Vertical pulse vacuum steam sterilizer mushroom autoclave sterilization equipments
Vertical pressure steam sterilizer mushroom autoclave sterilization equipments
Horizontal pressure steam sterilizer autoclave for canning autoclave
Lcd Display Automation Sterilizer

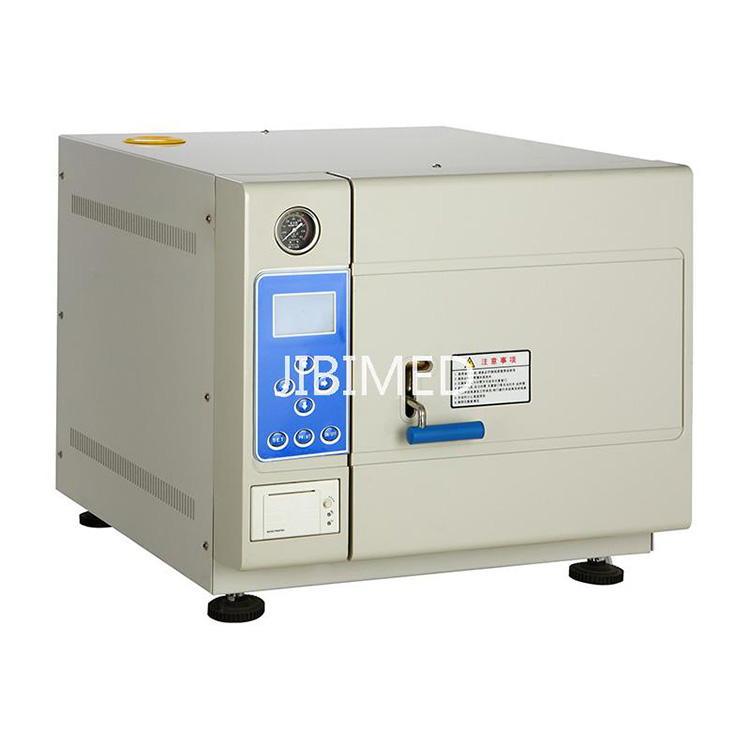

Led Display Automation SterilizerPulsating Vacuum Desktop Steam Automation Sterilization
Use
The Pulsating Vacuum Desktop Steam Automation Sterilizations are safely auto controlled, which are designed for the dental clinics, hospitals, school lab, scientific research institutions and laboratory. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food, etc.
Characteristics
• Standard Class B with three times vacuum and drying, the remaining temperature of sterilized instruments less than 0.2%.
• LCD display working status, touch keys.
• The vacuum data can reach -0.8bar, it fits various instrument, including package, unpackaged, solid, hollow,mult apertures and inset pipes. It makes sure the instrument can be sterilized completely.
• Fully computer controlled LCD display bright show. The interface is modularized panel for easy operation.
•Pulsating Vacuum Desktop Steam Automation Sterilization is installed with BOWIE&DICK which measures the penetration of water steam.
• Pulsating Vacuum Desktop Steam Automation Sterilization has vacuum test which can make sure the ability of vacuum testing.Fast and independent steam generator.
• Built-in mini printer which can record the sterilizing information.
• Equipped with Safety valve, Safety lock door system, Pressure lock system, Pressure or temperature overload protection, Alarm system.
• Pulsating Vacuum Desktop Steam Automation Sterilization inactivates the HIV, HBV, BSE, and bacillus efficiently.
Technical Data ofPulsating vacuum desktop steam sterilization
|
MODEL |
TM-XD35DV |
TM-XD50DV |
TM-XD90DV |
|
Technical Data |
|||
|
Sterilizing chamber volume |
35L φ300×500mm |
50L φ340×550mm |
90L φ400×720mm |
|
Working pressure |
0.22Mpa |
||
|
Working temperature |
134℃ |
||
|
Temperature adjust range |
105-134℃ |
||
|
Timer range |
0-99min |
||
|
Heat average |
≤±1℃ |
||
|
Power |
AC220V 50Hz/2.7KW |
AC220V 50Hz/4KW |
|
|
Dimension(mm) |
730×550×510 |
770×600×540 |
1000×690×610 |
|
Exterior package dimension(mm) |
810×680×650 |
880×730×700 |
1070×740×700 |
|
G.W/N.W |
115/93Kg |
130/106Kg |
200/180Kg |
