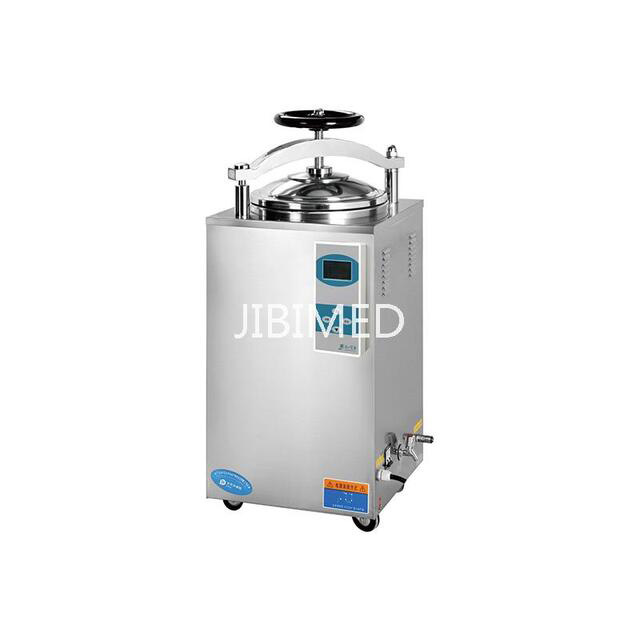

Lcd Display Automation Sterilizer

• Fully stainless steel structure.

• Auto discharge the cool air, and steam discharge automatically after sterilization.

• Automatically shut off with beep reminding after sterilization.

• Hand wheel type of quick open door structure.

• Over temperature & over pressure auto protection.

• Easy to operate, safe and reliable.

• Door safety lock system.

• With two stainless steel sterilizing baskets.

• LCD display of working status, touch type key.

• Safe protection of water lacking.

• With drying system.

• Self inflating type seal.

MODEL

LS-35HD

LS-50HD

LS-75HD

LS-100HD

Technical Data

Chamber volume

35L

φ318×450mm

50L

φ340×550mm

75L

φ400×600mm

100L

φ440×650mm

Working pressure

0.22Mpa

Working temperature

134℃

Max. working pressure

0.23Mpa

Heat average

≤±1℃

Timer range

0-99min or 0-99hour59min

Temperature adjust range

105-134℃

Power

2.5KW/AC220V 50HZ

3KW/AC220V 50HZ

4.5KW/AC220V 50HZ

Overall dimension(mm）

450×450×1010

510×470×1130

560×560×1120

540×560×1250

Transport dimension（mm）

570×550×1150

590×590×1280

650×630×1280

680×630×1370

G.W/ N.W

72Kg/56Kg

88Kg/68Kg

100Kg/80Kg

110Kg/85Kg
