Vertical pulse vacuum steam sterilizer mushroom autoclave sterilization equipments

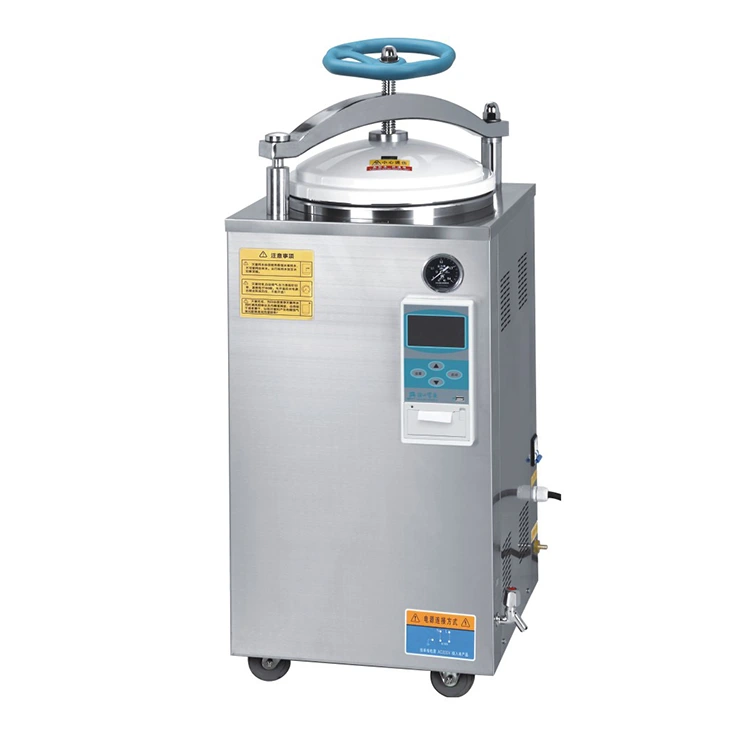

Vertical pressure steam sterilizer mushroom autoclave sterilization equipments
Horizontal pressure steam sterilizer autoclave for canning autoclave
Lcd Display Automation Sterilizer
Led Display Automation SterilizerThe vertical pressure steam sterilizers are assembled with heating system,micro-computer controlled system,over heat and over pressure protection system,which are reliablefor the sterilizing effects,convenient of operation and energy conservation.They are ideal equipments for clinics,scientific research institutes and other organizations to sterilize surgical instruments,fabrics,glasses, culture media etc.
◆Fully stainless steel structure.
◆Hand wheel type of quick-open door structure,self-inflating type seal.
◆ Door safety lock system.

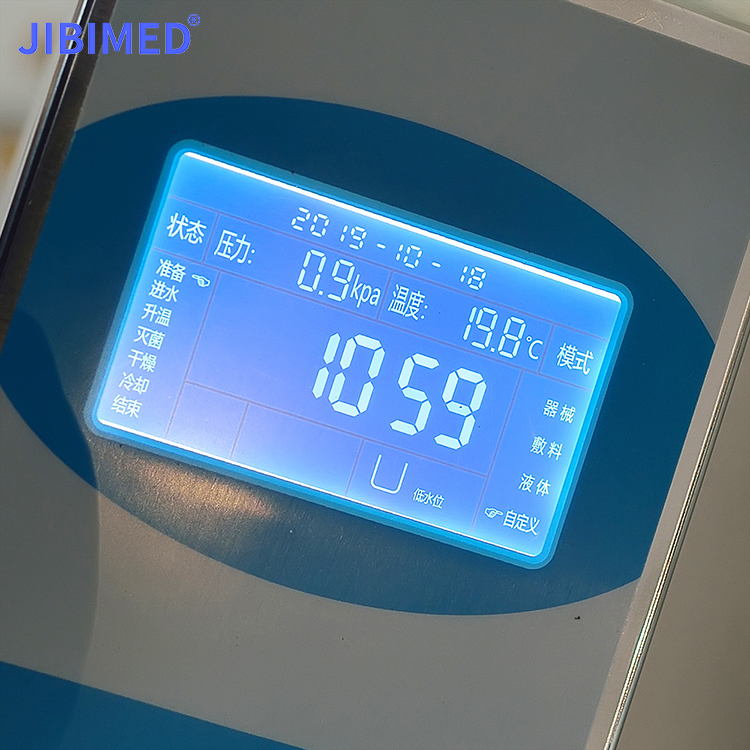

◆LCD display of working status,touch type key.
◆Auto discharge the cool air,and steam discharge automatically after sterilization.
◆ Over temperature &over pressure auto-protection.
◆ Safe protection of water lacking.
◆Automatically shut off with beep reminding after sterilization.
◆ Easy to operate,safe and reliable.
◆The cycle cannot be started if the door is not sealed. Once the cycle is started and running,the sealed door is locked and cannot be opened to ensure operational safety.
◆With two stainless steel sterilizing baskets.
◆ Reservation function:The date,year,month,day,hour and minute can be set.
◆Melting and heat preservation.The melting time can be set from 1 to 9999 mins and heat preservation time can be set from 1 to 9999 mins.
◆ Optional drying system.
◆The printing function is optional.
|
MODEL Technical Data |
LS-35HD |
LS-50HD |
LS-75HD |
LS-100HD |
|
Chamber volume |
35L φ318×450mm |
50L φ340×550mm |
75L φ400×600mm |
100L φ440×650mm |
|
Design pressure |
0.3MPa |
|||
|
Design temperature |
150℃ |
|||
|
Max.working pressure |
0.25MPa |
|||
|
Max.working temperature |
138℃ |
|||
|
Heat average |
≤±1℃ |
|||
|
Timer range |
0~99min or 0~99hour59min |
|||
|
Power |
1×2.5KW/AC220V.50Hz |
2×1.5KW/AC220V.50Hz |
3×1.5KW/AC220V.50Hz |
|
|
Overall dimension(mm) |
470×450×1020 |
520×490×1150 |
550×530×1180 |
580×560×1290 |
|
Transport dimension(mm) |
540×540×1160 |
580×580×1280 |
610×610×1320 |
640×640×1400 |
|
G.W/N.W |
84kg/65kg |
97kg/78kg |
115kg/97kg |
135kg/109kg |
