Vertical Pressure Steam Automation Autoclave

Send Inquiry

Product Description

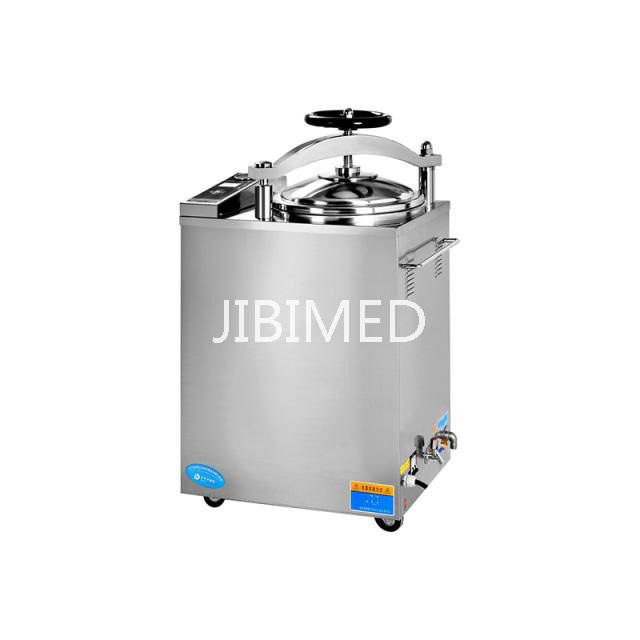

Vertical Pressure Steam Automation Autoclave

Use

The Vertical Pressure Steam Automation Autoclaves are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects. convenient of operation and energy conservation.Vertical Pressure Steam Automation Autoclave are ideal equipments for the scientific research institutes and the hospital laboratory.aa

Characteristics of Vertical Pressure Steam Automation Autoclave

• Fully stainless steel structure.

• Hand wheel type of quick open door structure.

• Door safety lock system.

• Automatically controlled by computer.

• LCD display of working status, touch type key.

• Over temperature &over pressure auto protection.

• Steam water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.

• Self inflating type seal.

• Safe protection of water lacking.o

• With perfect drying function.

• Automatically shut off with beep reminding after sterilization.

• With two stainless steel sterilizing baskets.

Vertical Pressure Steam Automation Autoclave has the following product features:

Technical Data of Vertical Pressure Steam Automation Autoclave

MODEL	LS-35HG	LS-50HG	LS-75HG	LS-100HG
Technical Data	LS-35HG	LS-50HG	LS-75HG	LS-100HG
Chamber volume	35L φ318×450mm	50L φ340×550mm	75L φ400×600mm	100L φ440×650mm
Working pressure	0.22Mpa
Working temperature	134℃
Max. working pressure	0.23Mpa
Heat average	≤±1℃
Timer range	0-99min/0-99hour59min
Temperature adjust range	0-134℃
Power	2.5KW/AC220V 50HZ	3KW/AC220V 50HZ	4.5KW/AC220V 50HZ
Overall dimension(mm）	600×410×1030	650×410×1140	690×470×1140	730×510×1270
Transport dimension（mm）	730×500×1170	730×500×1290	760×550×1290	820×600×1380
G.W/ N.W	96Kg/77Kg	102Kg/83Kg	120Kg/98Kg	135Kg/110Kg
