Aquarium UV Sterilizer For Water Treatment

The Aquarium Uv Sterilizer For Water Treatment adopts a special high strength non ozone ultraviolet sterilizing lamp and an inner wall after the special treatment of micro carbon smelly martensitic stainless steel barrel, outer side of

Send Inquiry

Product Description

Aquarium UV Sterilizer For Water Treatment


Aquarium UV Sterilizer For Water Treatment


24GPM /36GPM /48GPM /72GPM /96GPM /120GPM /144GPM


Working Principle:

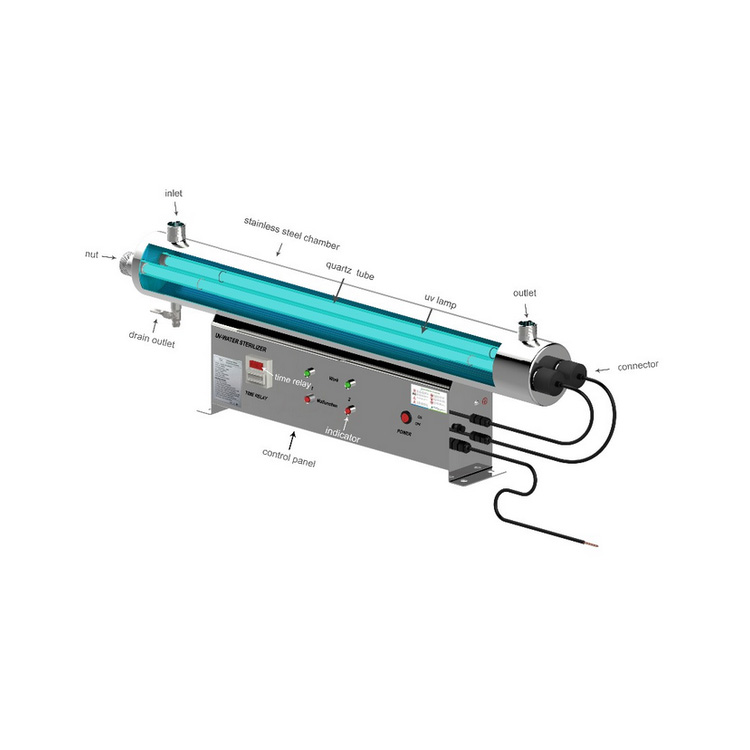

The Aquarium Uv Sterilizer For Water Treatment adopts a special high strength non ozone ultraviolet sterilizing lamp and an inner wall after the special treatment of micro carbon smelly martensitic stainless steel barrel, outer side of the barrel body with a special polishing treatment the pretreated water flowing in the tube when subjected to ultraviolet 253.7nm enough line volume of irradiation, has good sterilizing effect, but also effectively reduces the influence of ultra pure water.



Model No.

Power

Flow Rate

Inlet/Outlet

Operation Pressure

Product Size

PHIYANG-110

110W

24GPM(5.5m³/hr)

1"male/flange

10bar(145psi)

965*φ108

PHIYANG-165

165W

36GPM(8m³/hr)

1.5"male/flange

10bar(145psi)

965*φ133

PHIYANG-220

220W

48GPM(11m³/hr)

1.5"male/flange

10bar(145psi)

965*φ133

PHIYANG-330

330W

72GPM(16m³/hr)

2"male/flange

10bar(145psi)

965*φ168

PHIYANG-440

440W

96GPM(22m³/hr)

3"male/flange

10bar(145psi)

965*φ219

PHIYANG-550

550W

120GPM(30m³/hr)

4"male/flange

10bar(145psi)

965*φ275

PHIYANG-660

660W

144GPM(33m³/hr)

4"male/flange

10bar(145psi)

965*φ275



Feature ofAquarium Uv Sterilizer For Water Treatment


•304 polished stainless steel reactor
•Quartz sleeve ensure the best working temperature
•Comprehensive,rapid and efficient sterilization, sterilization, the highest rate is 99.9%, higher output, physical sterilization, No side effects, n no secondary pollution
•All stainless steel shell, the European technology, smooth inner wall. Not Blind Angle.
•Clean equipment,electroplating polishing,applicable to high purifying environment
•The electrical device is configured to the world market
•Special design, more convenient



Application scope ofAquarium Uv Sterilizer For Water Treatment


•Food processing industrial water disinfection, including juice, milk, beverage, beer, edible oil, and various kinds of canned products such as cold drink, water disinfection
•Aquarium Uv Sterilizer For Water Treatment can be used in electronic industry use the ultra pure water

•Hospital, all kinds of laboratory water disinfection, and the high content to a causative agent waste water disinfection
•Application water disinfection, including residents resident buildings, residential, office buildings, hotels, restaurants, tap water factory, etc
•Aquarium Uv Sterilizer For Water Treatment can be used in aquatic product processing purification disinfection, shellfish purification disinfection, fish processing purification disinfection,ect.
•Military camps, the water supply system
•Urban waste water disinfection, maximum capacity can reach above 1 million tons per day
•Swimming pools, water other entertainment water disinfection
•Cooling water disinfection, including power plant, nuclear power plant cooling water, industrial production cooling water, the central air conditioning system cooling water
•Aquarium Uv Sterilizer For Water Treatment can be used in biological, chemical medicine, cosmetics production with cooling water.
•Sea water, fresh water nursery, breeding (fish, eels, shrimp, abalone, shellfish, etc) water, total processing water can reach above 200000 tons per day
•Agricultural water disinfection, including water and irrigation, greenhouse,ect.
