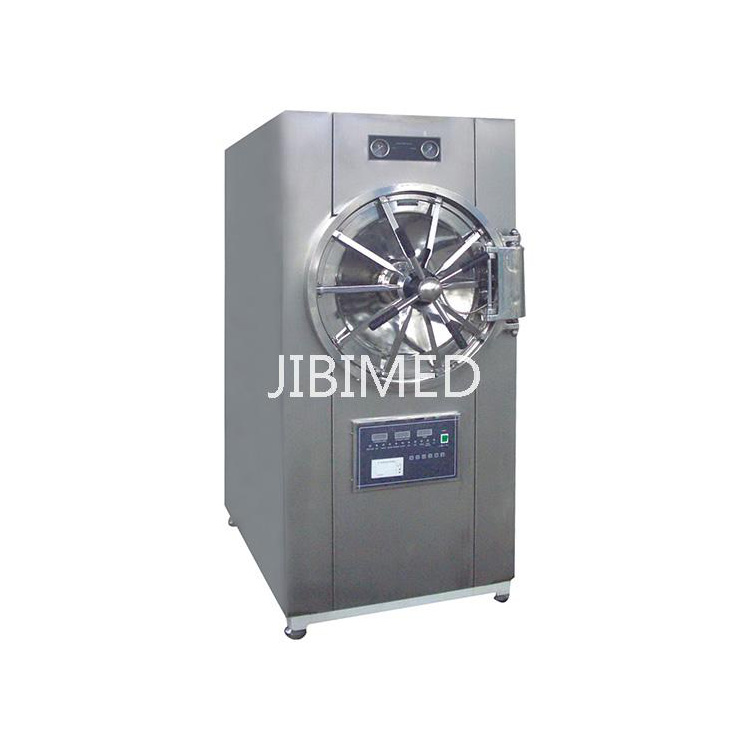

Horizontal Cylindrical Pressure Steam Automation Sterilization
  • Horizontal Cylindrical Pressure Steam Automation Sterilization - 0 Horizontal Cylindrical Pressure Steam Automation Sterilization - 0

Horizontal Cylindrical Pressure Steam Automation Sterilization

The Horizontal Cylindrical Pressure Steam Automation Sterilization, which is adopted the way of gravity exchange to release the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust.

Send Inquiry

Product Description

Horizontal Cylindrical Pressure Steam Automation Sterilization


Horizontal Cylindrical Pressure Steam Automation Sterilization



Use


The Horizontal Cylindrical Pressure Steam Automation Sterilization, which is adopted the way of gravity exchange to release the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilizing. This unit is an ideal equipment for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabric glassed, and the culture media etc.



Characteristics of Horizontal Cylindrical Pressure Steam Automation Sterilization


• Auto matially controlled the sterilizing process, easy to operate.

• Horizontal Cylindrical Pressure Steam Automation Sterilization is with drying function, suitable for the medical dressing drying.

• With over temperature, over pressure auto protect.

• The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the indoor doesn't close well.

• The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.

• Automatically cut off the power if the water lack happened, and alarm at the meanwhile.

• Horizontal Cylindrical Pressure Steam Automation Sterilization is fully stainless steel structure.

• With printer.



Technical Data of Horizontal Cylindrical Pressure Steam Automation Sterilization


MODEL

WS-150YDD

WS-200YDD

WS-280YDD

Technical Data

Sterilizing chamber volume(mm)

150L

φ440×1000

200L

φ515×1000

280L

φ600×1000

Working pressure

0.22Mpa

Working temperature

134℃

Temperature adjust range

40℃-134℃

Time for sterilization

0-99min

Time for drying

0-99min

Heat average

≤±2℃

Power

9kw/380V 50Hz

9kw/380V 50Hz

12kw/380V 50Hz

Dimension(mm)

1400×650×1600

1400×750×1700

1520×910×1900

Exterior package dimension(mm)

1560×820×1820

1560×910×1880

1680×1080×2100

G.W/N.W

430/340kg

436/350kg

570/462Kg
