Horizontal Cylindrical Pressure Steam Sterilization
  • Horizontal Cylindrical Pressure Steam Sterilization - 0 Horizontal Cylindrical Pressure Steam Sterilization - 0

Horizontal Cylindrical Pressure Steam Sterilization

The Horizontal cylindrical pressure steam sterilization, which is adopted the way of gravity exchange to release the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust.

Send Inquiry

Product Description

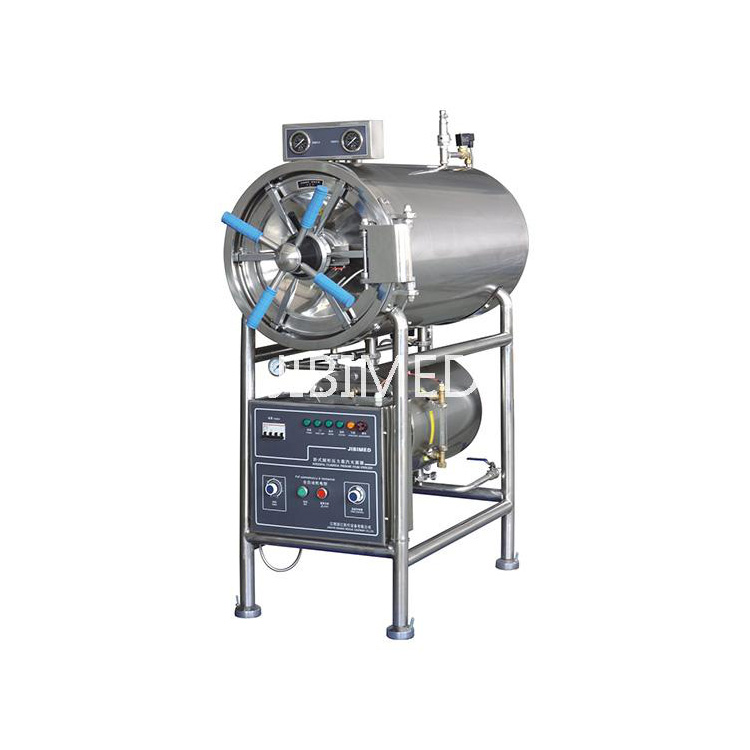

Horizontal Cylindrical Pressure Steam Sterilization


Horizontal Cylindrical Pressure Steam Sterilization


Use

The Horizontal cylindrical pressure steam sterilization, which is adopted the way of gravity exchange to release the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilizing. This unit is an ideal equipment for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabric glassed, and the culture media etc.



Characteristics ofHorizontal cylindrical pressure steam sterilization


• Auto manually controlled the sterilizing process, easy to operate.

• Horizontal cylindrical pressure steam sterilization is with drying function, suitable for the medical dressing drying.

• With over temperature, over pressure auto protect.

• The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the indoor doesn't close well.

• The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.

• Automatically cut off the power if the water lack happened, and alarm at the meanwhile.

• Horizontal cylindrical pressure steam sterilization is fully stainless steel structure.



Technical Data ofHorizontal cylindrical pressure steam sterilization


MODEL

WS-150YDC

WS-200YDC

WS-280YDC

WS-400YDC

Technical Data

Sterilizing chamber volume

150L

φ440×1000

200L

φ515×1000

280L

φ600×1000

400L

φ700×1100

Working pressure

0.22Mpa

Working temperature

134℃

Temperature adjust range

40℃-134℃

Time for sterilization

0-60min

Time for drying

0-60min

Heat average

≤±2℃

Power

9kw/380V 50Hz

9kw/380V 50Hz

12kw/380V 50Hz

18kw/380V 50Hz

Dimension(mm)

1400×600×1300

1400×670×1650

1400×770×1780

1430×880×1830

Exterior package dimension(mm)

1550×750×1850

1560×820×1850

1680×920×2100

1600×1050×2100

G.W/N.W

320/240kg

350/260kg

465/365Kg

530/420Kg
