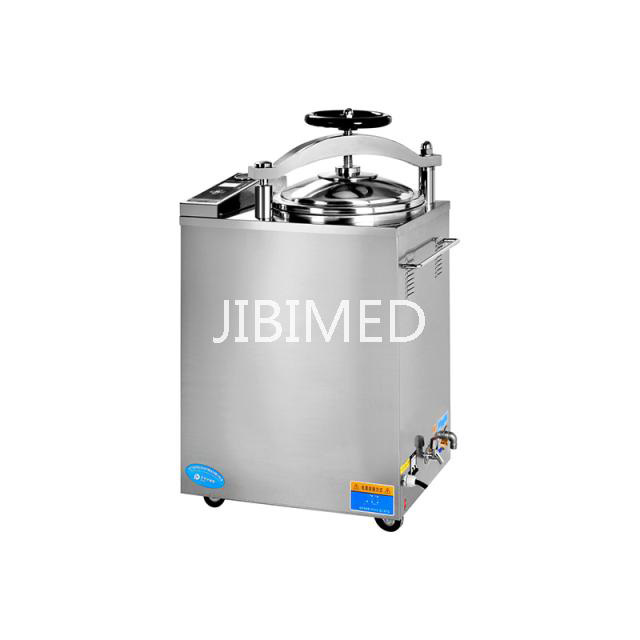

Vertical Pressure Steam Automation Sterilizer

• Fully stainless steel structure.

• Hand wheel type of quick open door structure.

• Door safety lock system.

• Automatically controlled by computer.

• LCD display of working status, touch type key.

• Over temperature &over pressure auto protection.

• Steam water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.

• Self inflating type seal.

• Safe protection of water lacking.o

• With perfect drying function.

• Automatically shut off with beep reminding after sterilization.

• With two stainless steel sterilizing baskets.

MODEL

LS-35HG

LS-50HG

LS-75HG

LS-100HG

Technical Data

Chamber volume

35L

φ318×450mm

50L

φ340×550mm

75L

φ400×600mm

100L

φ440×650mm

Working pressure

0.22Mpa

Working temperature

134℃

Max. working pressure

0.23Mpa

Heat average

≤±1℃

Timer range

0-99min/0-99hour59min

Temperature adjust range

0-134℃

Power

2.5KW/AC220V 50HZ

3KW/AC220V 50HZ

4.5KW/AC220V 50HZ

Overall dimension(mm）

600×410×1030

650×410×1140

690×470×1140

730×510×1270

Transport dimension（mm）

730×500×1170

730×500×1290

760×550×1290

820×600×1380

G.W/ N.W

96Kg/77Kg

102Kg/83Kg

120Kg/98Kg

135Kg/110Kg
