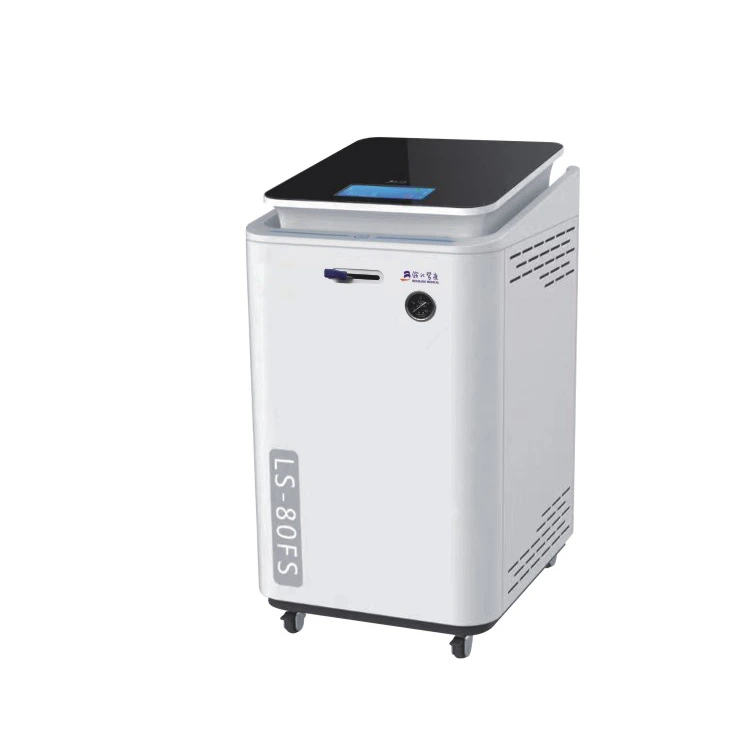

Vertical Pressure Steam Sterilizer Manual Flip-top

The manual flip-top vertical steam sterilizer has an advanced design and is safe and reliable.It is mainly used in hospitals of all levels,health clinics,laboratories and testing departments to sterilize various medical devices,utensils,dressings,surgical gowns, culture media,liquids,and other articles to prevent cross-infection.

Characteristics

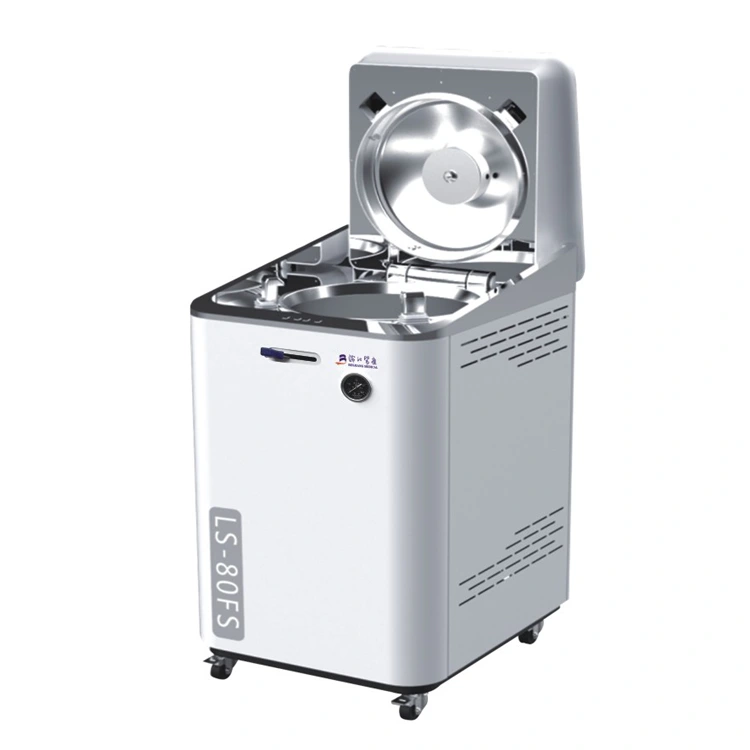

◆ Flip-top design,rod type manual open and close the cover,more efficient and prevent the infection.

◆(Optional)Equipped with a drying function,which is provided by a drying silica gel belt to enhance the drying effect of sterilized items.

◆(Optional)An external vacuum pump can be connected.Once connected with the vacuum pump,it can become a sterilizer with pulsating vacuum function,and users can switch freely.

◆7"LCD touch screen with Android operating system,enabling convenient operation of the device.

◆ The whole process of water inlet,(vacuum),heat,sterilization,drainage,steam discharge,and(drying)is proceed automatically.

◆ Reservation function:The date,year,month,day,hour and minute can be set.

◆The operation interface is equipped with multiple fixed programs and melting/holding programs.It also features a dedicated test program for pharmaceutical packaging materials. Additionally,there are three user-defined programs available,allowing users to select the appropriate program based on the items to be sterilized.

◆0.22μm high-efficiency air filter ensures the incoming air is sterile and avoids recontamination.

◆ Steam-water inner circulation system:No steam discharge out,it ensures a clean and dry environment.

◆Standard PT/TT test port is convenient to carry out the future testing.

◆ Chamber material:2.5mm SUS304 stainless steel made,with double-layer stainless steel mesh baskets.

◆ Temperature and pressure:Maximum working temperature:138℃,Design pressure 0.3Mpa,Design temperature:150℃.

◆ Time range:Sterilization time:1-9999 minutes,Melting time:1-9999 minutes,Preservation time:1-9999minutes.

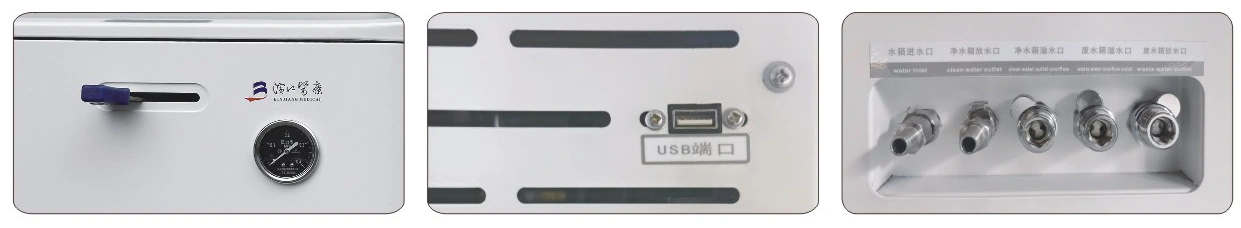

◆USB storage function:the USB port is provided,so the sterilizing data can be stored conveniently to be viewed and traced.

◆GMP-compliant authority management and data storage:with more than three levels of password authority control,each level has an independent password,it can memorize and store 100 sterilization cycles and support expandable storage.

◆ Safety protection devices:Electric and mechanical dual safety interlocks,lid closure safety inspection system,automatic fault detection system,over-temperature protection,low-water protection,
